Material Of Construction :
All wetted parts like pumping chamber, pump base, discharge tee, nozzle, wing nut and impeller are made of SS316 investment castings. The outer & inner pipes are seamless type made of SS-316.Shaft is made of SS-316 bright bar. Guide Sleeve and lip seals are made of Teflon. Drive : Pumps Available with Pneumatic / Flameproof / Non Flameproof Motor & also Available with Regulating System. Application :
Solvents, Suspensions, Emulsifiers, Surfactants, Oils, Polysol, Syrup bases, Water, Dispersing Agents, Perfumes, Essential Oils, Base Oils, Edible oils, Milk, Juices, Anti - Oxidising agents, Alcohols, Wine, Beer, Preservatives , Colour, etc. Operating Data :
Capacity Upto 110 LPM at Open Discharge. Head Upto 21 mtrs

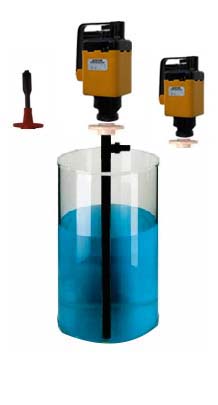

PP Barrel Pump
Material Of Construction :
All wetted parts like pumping chamber, pump base, discharge tee, nozzle, wing nut and Impeller are made of Molded Polypropylene, Outer & Inner pipes are made of Polypropylene, Shaft is made of Hastalloy-B-2 or, SS-316 also available. Guide sleeve and lip seals are made of Teflon & Impeller Also Available in ETFE/PVDF(If required) Drive : Pumps Available with Pneumatic / Flameproof / Non Flameproof Motor & also Available with Regulating System. Application :
Lubricants used for wire drawing, Electroplating solutions, Weak Solvents LDO or HSD for furnaces, Pickling Agents, Degreasing solutions, White Spirit, Thinners (Paint shop), LDO HSD (Gen. Sets), Hydraulic Acid, Thermic fluids, Transformer Oil, Effluent Treatment Chemicals, Coolants, De watering Pits, Filling of overhead tanks, Dilute H2SO4, HF, NaOH, Formic Acid, salt solution, pesticides intermediates & toxic chemicals. Operating Data :
Capacity upto 110 LPM at open discharge. Head upto 25 mtrs

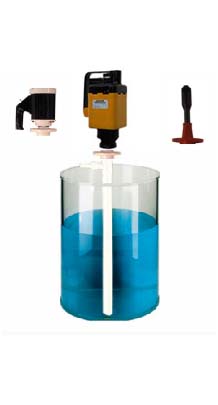

Teflon Barrel Pump
Material Of Construction :
All wetted parts like pumping chamber, pump base, discharge tee, nozzle, wing nut, impeller are made of TEFLON, Outer & Inner pipes & Guide sleeve are made of Teflon, Shaft is made of Hastalloy-B2. Impeller is made of ETFE (Moulding grade of Teflon)
Drive : Pumps Available with Pneumatic / Flameproof / Non Flameproof Motor & also Available with Regulating System.
Operating Data :
Capacity Upto 1 10 LPM at Open Discharge. Head Upto 21 mtrs

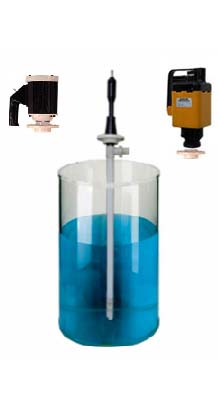

PVDF Barrel Pump
Material Of Construction :
All wetted parts like pumping chamber, pump base, discharge tee, nozzle, wing nut, impeller are made of PVDF, Outer & inner pipes are made of PVDF.Shaft is made of HastaIloy-B2. Guide sleeve and lip seals are made of TEFLON. Impeller available in ETFE/PVDF.
Drive : Pumps Available with Pneumatic / Flameproof / Non Flameproof Motor & also Available with Regulating System.
Operating Data :
Capacity Upto 1 10 LPM at Open Discharge. Head Upto 21 mtrs

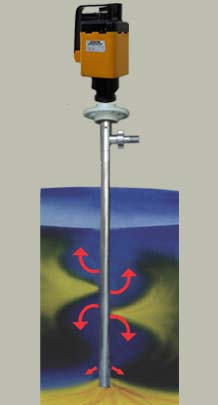

Mixing Pump
Various liquids, which are processed in industry and trade, are emulsions, dispersions or suspensions. These liquids have to be mixed and homogenised prior to further processing.
To Avoid Problem of Stirring the Liquid in a 200 ltr Bunghole Drum Where Container Opening is Very Small for a Normal Stirrer.
There we can give this mixing Pump. It can Mix & Pump at the Same time Without any Help. This double-acting pump mixes liquids without shifting Them before feeding them to the processing area. Flammable as well as non-flammable liquids can be handled in a very easy way with This MAXFLOW Pump.
These pumps can be used for complete transfer systems also.
The ideal solution for container emptying
* These Barrel can be used as container pump as vertical, submersible centrifugal pump, which is driven by a standard single-phase motor.
* These pumps have been designed in such a way that it can be fitted into the container easily.
* The drive output has been chosen in such a way that liquids up to a density of 1.8 kg/dm3 can be pumped.
* The materials can be used in almost all application.
THE PUMP IS FOR INTERMITTENT USE ONLY
ACCESSORIES
Strainer : To Prevent Foreign Particles inside Pump
Wall Bracket : Wall bracket Usd when pump is not in Use, to Storing the pump in vertical position, that will Increased the pump life and protect the pump From damage and deformation.
